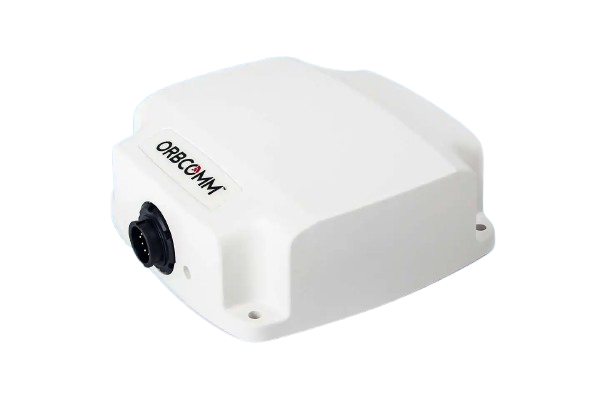

ST 6100

OrbcommOrbcomm
ST 6100
Easy integration The fully programmable ST 6100 includes comprehensive resources to facilitate integration into a wide range of solutions. These include development, testing and production environments, documentation, code samples, devicelevel configurable applications and free technical support. Global satellite connectivity The ST 6100 communicates over the OGx and IDP satellite services for uninterrupted visibility of operations and field data virtually anywhere. Comprehensive feature set The ST 6100 offers enhanced functionality at great value. The internal antenna features exceptional low elevation angle performance, allowing one device to support both terrestrial and maritime applications. The ST 6100 also features a built-in accelerometer, expanded memory capacity and enhanced support for GPS, Glonass and Beidou.

Related Solution

View our vessel monitoring system solution
Request Information

Key Features

Satellite communication
• Satellite service: two-way, Global, OGx or IsatData Pro
• Maximum message size:
? OGx: From-mobile 1 MB, to-mobile 1 MB
? IsatData Pro: From-mobile 6.4 kB, to-mobile 10 kB
• Typical latency: <15 sec, 100 bytes
• Elevation angle: 0° to +90°
• Frequencies:
? OGx: Rx 1525.0 to 1559.0 MHz; Tx 1626.5 to 1660.5 MHz
? IsatData Pro: Rx 1525.0 to 1559.0 MHz; Tx 1626.5 to 1660.5 MHz
• EIRP: <7.0 dBW
Dimensions
• 12.6 cm x 12.6 cm x 4.9 cm
Accelerometer
• 3-axis accelerometer GPS/Glonass/Beidou/Galileo
• Acquisition time: Hot: 1 second; Cold: 29/30/36/29 seconds
• Accuracy: 2.0m CEP
• Sensitivity:
? Acquisition: -148 dBm
? Tracking: -163 dBm

Specifications

Electrical
• Input voltage: 9 to 32V; Load dump protection: +150V; SAE J1455 (Sec. 4.13)
• Power consumption (typical average @12V DC, 22°C):
? IDP Receive: 65 mA;
? GPS/Glonass/Beidou Receive: 22 mA;
? Transmit: 0.65 A;
? Sleep: 100 ?A
External interfaces
• Inputs/outputs: 4 analog or digital in/out
• Serial: RS-232; RS-485
Environmental
• Operating temperature: -40°C to +85°C
• Dust and water ingress: IP67
• Vibration: SAE J1455 (Sec 4.9.4.2 fig 6-8); MIL-STD-810G (Sec 514.6)
• Shock: MIL-STD-810G (Sec 516.6)
Programming
• Lua scripting engine with core services. SDK with GUI development tools available. Lua software application and firmware upgradable over the air (SOTA, FOTA)
• Core services: Geofence, data logger, position reporting, accelerometer events, serial communications
• AES 256 encryption-capable
• Optional, configurable terminal apps:
? Analytics: Notifications and reports for driver behaviour and vehicle/asset performance.
? Garmin FMI: Support for text messaging, stops, driver ID, hours of service, file-transfer, custom forms, and speeding alerts.
AVL: Supports ST 6100 integration into fleet management solutions.
? Garmin Dispatch app: Tracking, navigation, driver communication and dispatch using Garmin devices.
? Sensors: Generates reports, alarms and histograms from connected sensors and devices.
? Modbus: Enables data processing and alarms from Modbus device data.
? Vessel Monitoring System: Location tracking, status monitoring and behavior monitoring.
Memory
• Lua Code RAM: 4MB
• Lua Code NVM: 8MB
Options
• Side or bottom connector variants

Technical Details

Certification • ST 6100 Regulatory: CE, FCC, IC, Anatel, RCM Mark, IEC 60945, C1D2, SRRC, IFT, ICASA, FFA • ST 6101 Regulatory: CE; Pending: FCC, IC, Anatel, RCM Mark, IEC 60945, C1D2, SRRC, IFT, ICASA, FFA • Others: Inmarsat Type Approval, IP67

Related Products

DS 300Orbcomm

DS 300

ORBCOMM’s wireless door sensor delivers enhanced visibility of trailer and container operations and improved cargo security. It detects when doors open or close, enabling fleet operators to know if the cargo area is being accessed as scheduled and react quickly to unexpected openings.

Learn more
SC 1000Orbcomm

SC 1000

Solar-powered satellite tracking for intelligent visibility.

Learn more

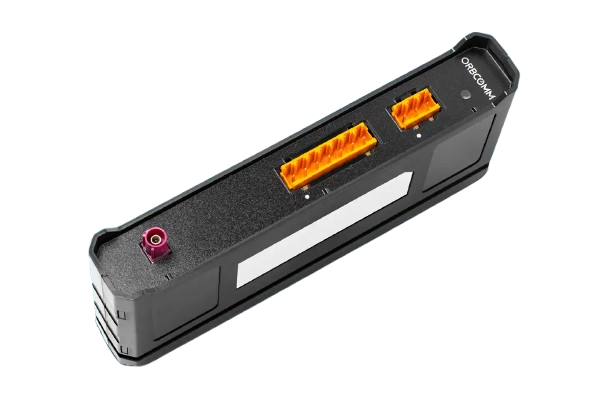

CT 3600Orbcomm
